Object recognizer

Intellectual module «Object recognizer» in ClickVideo is capable of recognizing necessary object types in camera’s field of view:

• Airplane
• Animal
• Bicycle
• Bird
• Boat
• Bus
• Car
• Motorcycle
• Human
• Sport ball
• Train
• Truck

This module is based on artificial intelligence and deep machine learning that greatly improves its recognition accuracy.


The "Use high-resolution stream in archive" option is provided in the module settings, which means that the module will use the high-resolution stream indicated in the "Universal Camera" module settings and can significantly increase the CPU load.

The "Object Recognizer" can "process the selected object" or "do not process the selected object", that is, whenever a module is triggered, it passes ("skips") the signal to the next module in the chain. If you need to detect one type of object while ignoring another type, you can use 2 or more "object recognizer" modules in the chain.

You can also set the "recognition interval" (the time required to recognize a specific object type) in the module's settings. It can be used for 30 milliseconds to 3 seconds. The smaller the recognition interval, the higher the processor load.

Each object type has a "recognition accuracy" field, which is responsible for the percentage of recognition accuracy.

According to the selected percentage module will be looking for necessary objects in camera’s field of view. If you set up e.g. 90%, then Artificial intelligence will be looking for the objects that are 90% matching to the selected object type. So the lower the percentage, the lower the recognition accuracy, but recognition speed most probably will be faster.
You can choose multiple types of objects, but recognition accuracy will be higher if there are not so many objects in camera’s field of view.

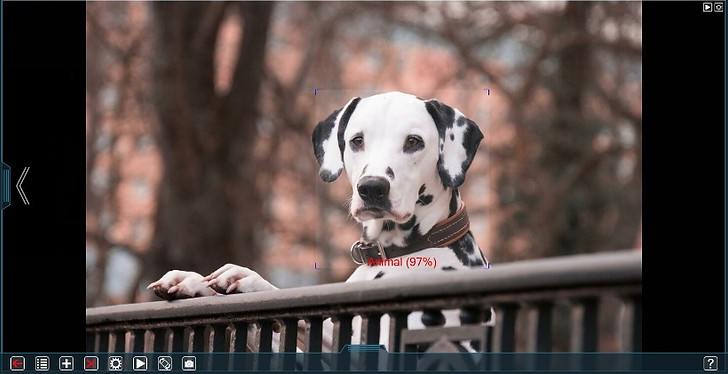

Selected type (or multiple types) of the object will be displayed on the screen as a frame with the name of the object and percentage of recognition.


You can use different modules after «Object recognizer» in the modules chain. They will receive the signal whenever «Object recognizer» is triggered.


For example, you can use the "Preview and Archive" module and then start recording when a specific object is detected. Or, you can use the "Send Email" / "Send SMS" module, in this way, the notification will be sent after recognition. Similarly, as long as the "Object Recognizer" detects an object, you can use the "Sound Alarm" module to turn on the warning alarm. The flexible modular system in ClickVideo allows the creation of any desired system based on the "object recognizer".


Object recognizer Additional License

Per camera

"Object recognizer " module for 1 camera, 1-year updates, perpetual license. License request Pro License in use at the system.

HKD$5500
